The deep wells in the cylinders and the square sleeves are painstakingly drilled out from a solid block with a gun drill. This machine uses high pressure oil pumped to the cutting edge of a specialized bit to slowly drill out a perfectly straight and deep well.

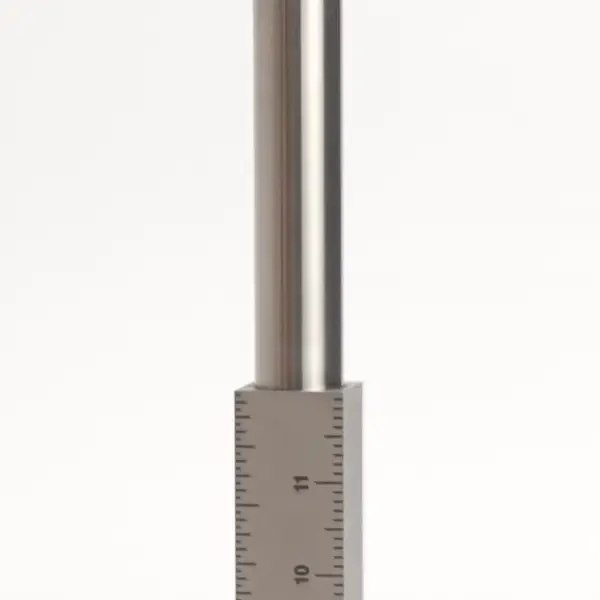

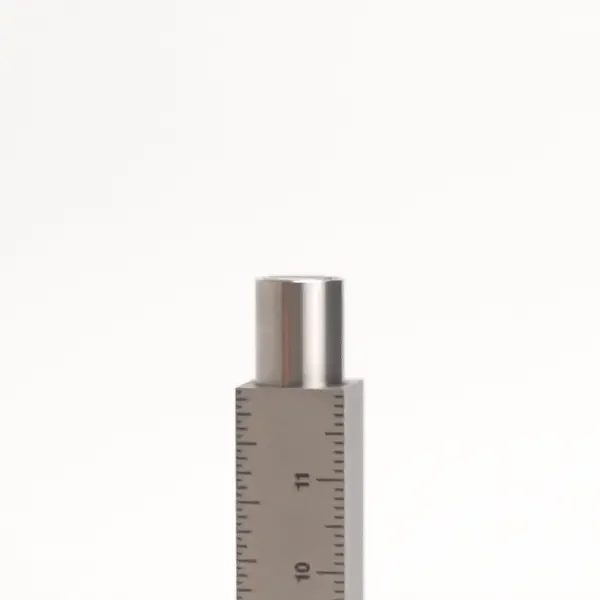

The clean and smooth cylindrical pen slides neatly into its sleeve, held in by a magnet once in its final position.
You’ll note a slight popping sound when removing it from its sheath—the effect of high tolerances creating a pneumatic seal, much like a piston.

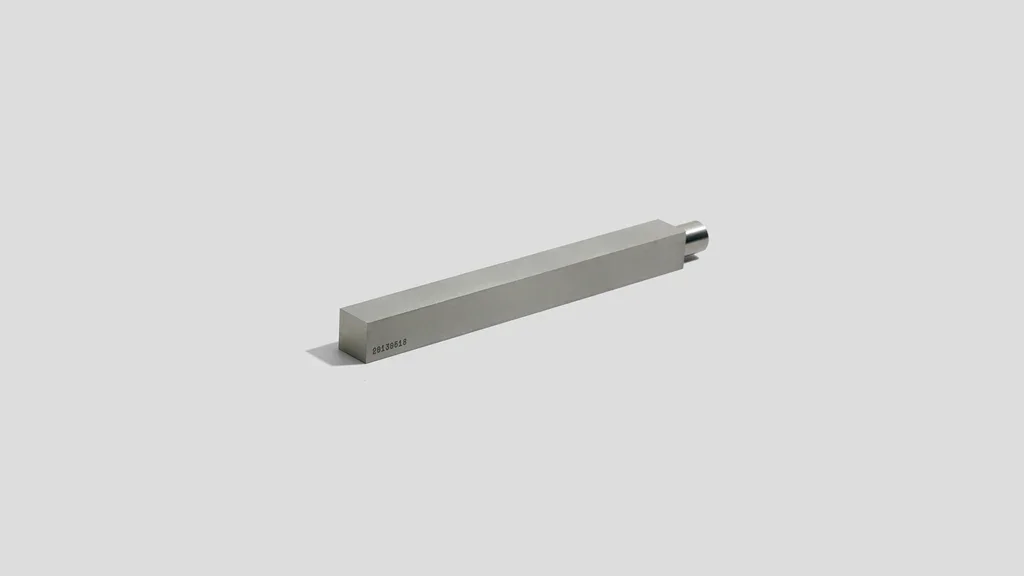

There is no visible branding on the surface of Pen Type-A®. However, hidden under the coin screw is our tiny CW&T inscription. (Just in case you or your grandkids want to figure out where it came from.) Shown here on the sleeve is an example of a custom engraving you can add to your order.
MADE IN THE USA
Pen Type-A® is machined using high precision tools at a manufacturing facility in Vermont.

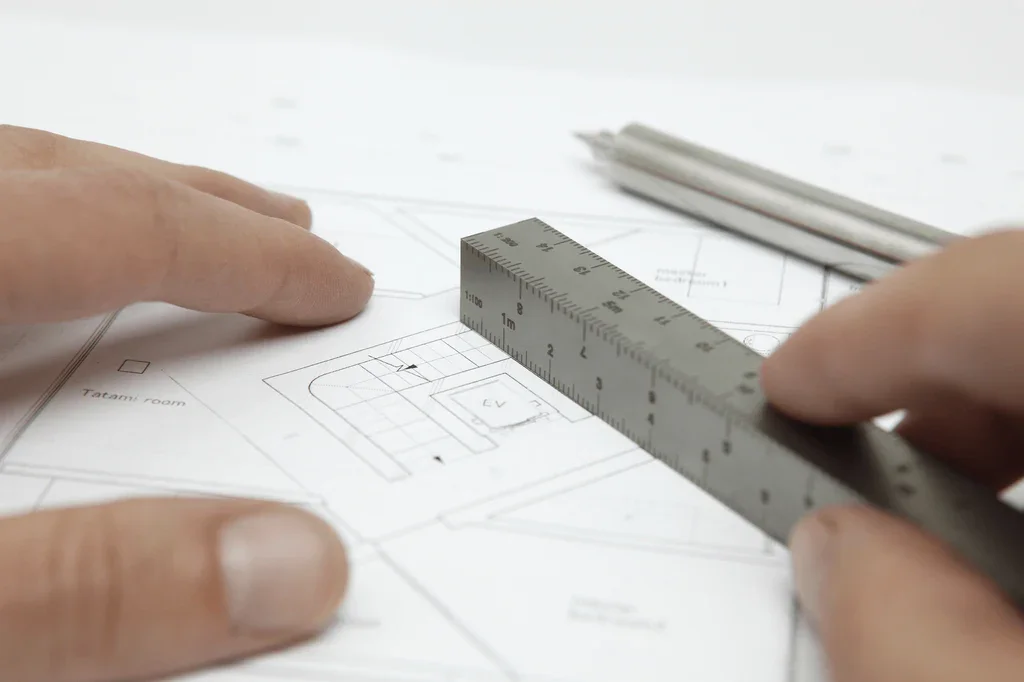

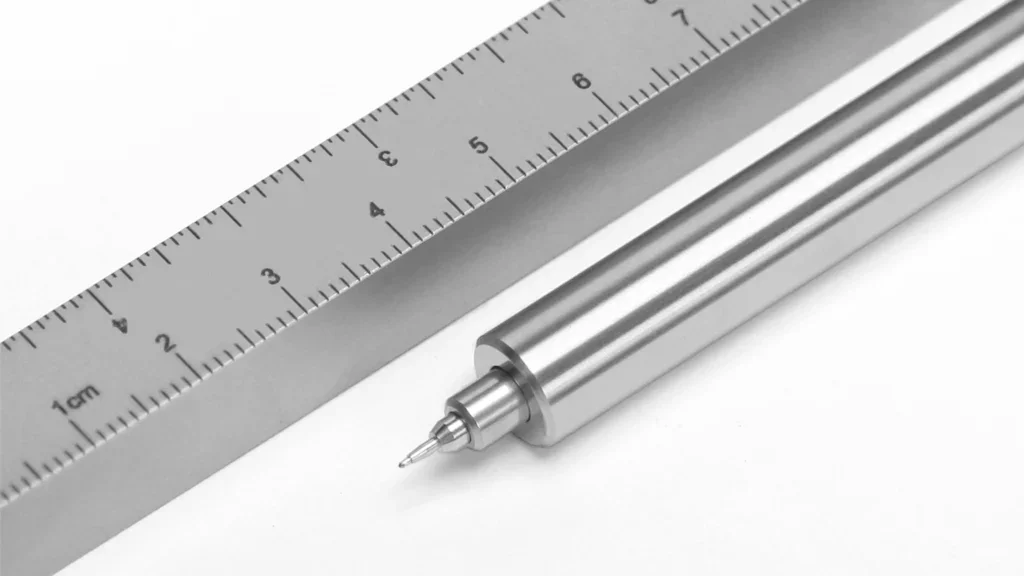

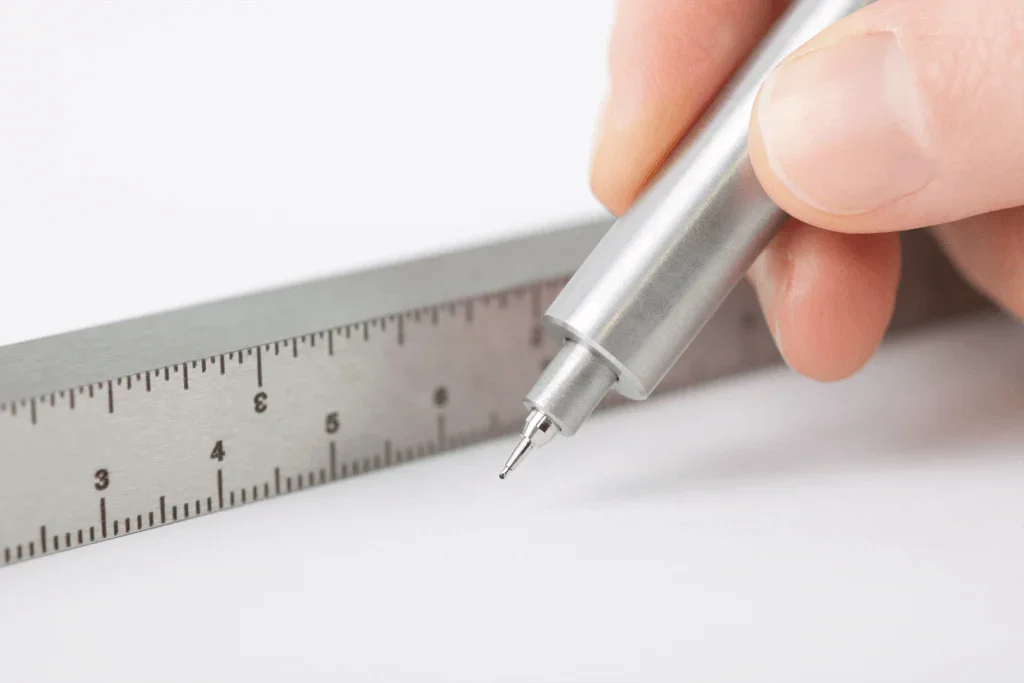

The stepped geometry of the tip leaves the contact point exposed, so you can see what you are drawing. It is perfect for architects, illustrators, and designers. Inside the ruler sleeve is a stepped area keeping the super fine tip gently rested against a silicone pad.Pen Diameter: 9.8mm
Pen Length: 125mm
Sleeve Weight: 74 grams (2.6 oz)
Sleeve Length: 120mm

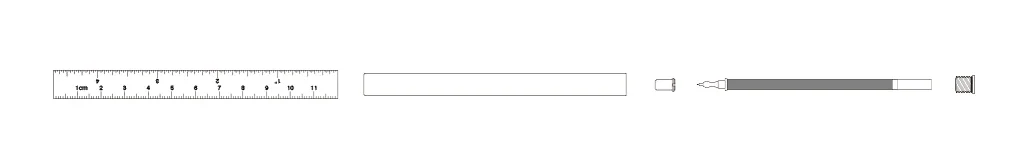

Each pen includes a Black Pilot Hi-Tec-C 0.3mm ink cartridge. They are available in 4 line widths and over 30 colors. To replace the ink cartridge, simply unscrew the back of the pen with a coin.
Sleeve Width: 12mm
Weight: 50 grams (1.75 oz)
Material: 300 and 400 series Stainless Steel
